The machine is designed to wind toroidal coils, like CT (Current Transformers), small power transformers, dimmerstats etc.
The machine is provided with microprocessor based controller.

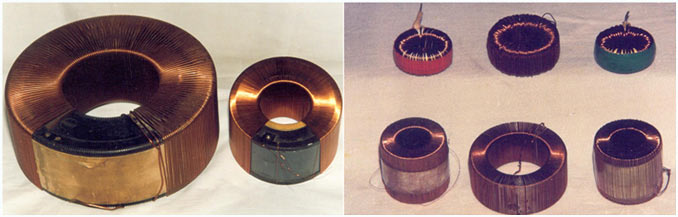

Pictures and Brief specifications of Various Toroidal winding machines and wound jobs
TOROIDAL COIL WINDING MACHINE (Model TWM/2)
| Job Capabilities |
Coil Dimensions after winding.
Minimum ID and Maximum Height should not occur at a time.
|
| Minimum ID |
15mm |
| Maximum OD |
100mm |
| Maximum Height |
50mm |
| Brief Specifications |
|
| Wire Gauges |
27 SWG To 40 SWG |
| Motor |
AC 0.5 HP/220V/1440 RPM |
| Power Requirement |
220/230 V AC 50 C/s Single Phase 1 HP |
| Fill Counter |
Electronic Microprocessor based |
| Wind Counter |
Electronic Microprocessor based |
| Winding Speed |
Continuously Variable Max. 125 RPM |
| Controller |
Microprocessor based |
TOROIDAL COIL WINDING MACHINE (Model TWM 3/50)
| Job Capabilities |
Coil Dimensions after winding.
Minimum ID and Maximum Height should not occur at a time. |
| Minimum ID |
50mm |
| Maximum OD |
250mm |
| Maximum Height |
100mm |
| Brief Specifications |
|
| Wire Gauges |
16 SWG To 30 SWG |
| Motor |
AC 1 HP/220V/1440 RPM |
| Power Requirement |
220/230 V AC 50 C/s Single Phase 1.5 HP |
| Fill Counter |
Electronic Microprocessor based |
| Wind Counter |
Electronic Microprocessor based |
| Winding Speed |
Continuously Variable Max. 200 RPM |
| Controller |
Microprocessor based |
TOROIDAL COIL WINDING MACHINE (Model TWM 4)
| Job Capabilities |
Coil Dimensions after winding.
Minimum ID and Maximum Height should not occur at a time. |
| Minimum ID |
100mm |
| Maximum OD |
400mm |
| Maximum Height |
150mm |
| Brief Specifications |
|
| Wire Gauges |
10 SWG To 22 SWG |
| Motor |
AC 2 HP/220V/1440 RPMAC 2 HP/220V/1440 RPM |
| Power Requirement |
220/230 V AC 50 C/s Single Phase 2.5 HP |
| Fill Counter |
Electronic Microprocessor based |
| Wind Counter |
Electronic Microprocessor based |
| Winding Speed |
Continuously Variable Max. 100 RPM |
| Controller |
Microprocessor based |
TOROIDAL COIL WINDING MACHINE (Model TWM/6)
| Job Capabilities |
Coil Dimensions after winding.
Minimum ID and Maximum Height should not occur at a time. |
| Minimum ID |
125mm |
| Maximum OD |
475mm |
| Maximum Height |
185mm |
| Brief Specifications |
|
| Wire Gauges |
8 SWG To 20 SWG |
| Motor |
AC 2.5 HP/220V/1440 RPM |
| Power Requirement |
220/230 V AC 50 C/s Single Phase 3HP |
| Fill Counter |
Electronic Microprocessor based |
| Wind Counter |
Electronic Microprocessor based |
| Winding Speed |
Continuously Variable Max. 100 RPM |
| Controller |
Microprocessor based |
Toroidal Winding Machines Quick Reference Guide
